Overview

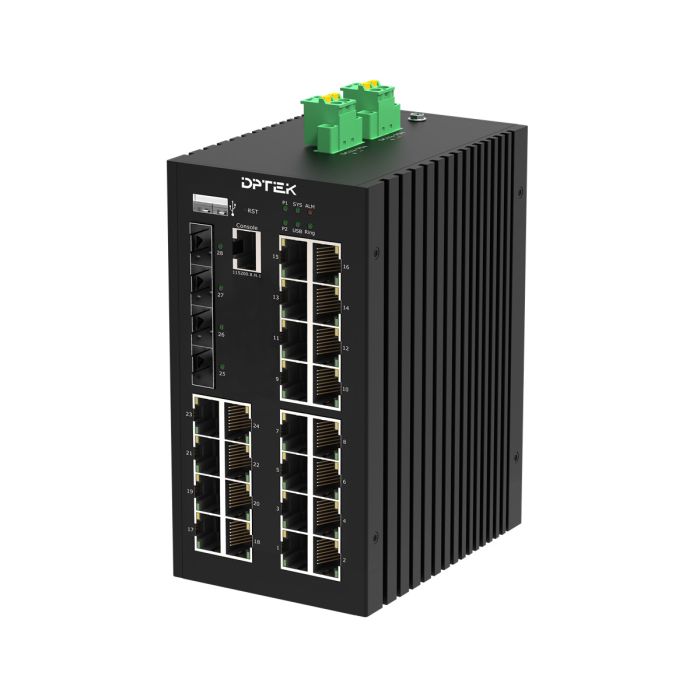

The DPTEK DK3310MI-24T4X series are the highly reliable Layer 2+ managed industrial Ethernet switches with 24-port 10/100/1000Base-T RJ45 and 4-port 1G/2.5G/10GBase-X SFP+. With full gigabit downlink and 10G uplink capability, they can provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. They support DI/DO/RS485, G.8032 ERPS, MSTP/RSTP/STP redundancy technologies, IPv4/IPv6 static routing, DHCP server and robust layer 2 management and secure function, which all making them ideal for large-scale industrial networks.
DK3310MI-24T4X series are also the high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, including redundant power supply with DC12-75V input, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 80°C as well as high-level EMI/EMC capability. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.
Features:
➢ 24*10/100/1000Base-T, 4*1G/2.5G/10G Base-X SFP+
➢ 12-75V redundant DC power supply with polarity reverse/over-voltage/over-current protection
➢ Support USB one key configuration & upgrading
➢ DI/DO/RS485 are optional
➢ Layer 3 features: Support IPv4/IPv6 static routing, DHCP server
➢ Layer 2 features: VLAN; ERPS, STP/RSTP/MSTP; Link aggregation, IGMP snooping, port mirroring, QinQ, 802.1X, port isolation, RMON, NTP client, DHCP snooping/client, Ping/Tracert test, ACL, QoS and SFP DDM function
➢ Management and maintenance: IPv4 and IPv6 management; Support Web, SNMP, CLI, Telnet/SSH management method; Support user management, system log, configuration upload/download through web interface, firmware upgrade via HTTP/TFTP/USB
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C~+ 80°C
| Тегло, кг | 0.000000 |
|---|---|
| Марка | DPTEK |
| Цвят | Черен |
| Country of Manufacture | Китай |
| Приложение: | Industrial |
| Скорост оптични портове | 1 Gb/s, 2.5 Gb/s, 10 Gb/s |
| Оптични портове | SFP |
| Брой Оптични Портове | 4 |
| PoE | НЕ |
