Индустриален суич 8*10/100/1000Base-T + 4*100/1000Base-X SFP + 4*1G/2.5/10GBase-X SFP+ Layer 3

Overview

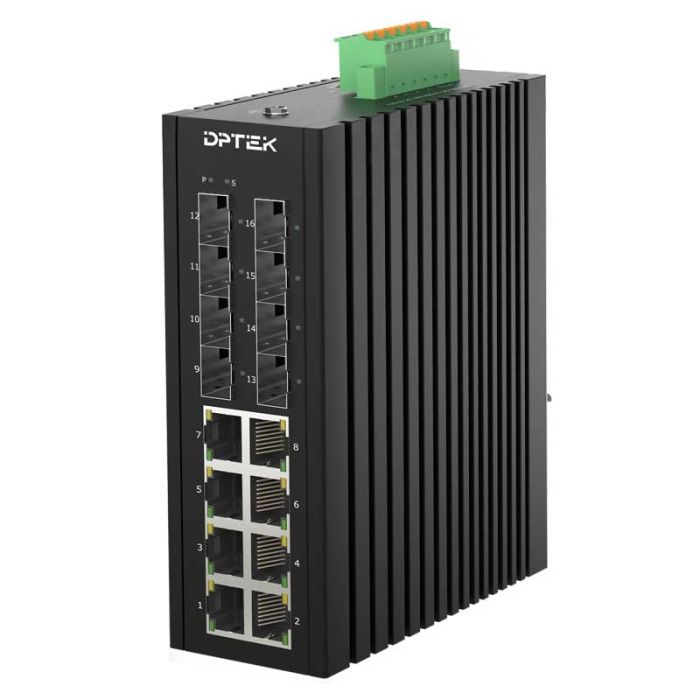

The DPTEK DK3510MI-8T4GS4X is the highly reliable layer 3 managed industrial Ethernet switches with 8-port 10/100/1000-T RJ45, 4-port 100/1000Base-X SFP and 4-port 1G/2.5G/10GBase-X SFP+ interfaces. It supports ERPS redundant network and the self-recovery mechanism is less than 20ms on full load which allows you to scheme a reliable Ethernet network by building a redundant ring topology as your back-up solution. DK3510MI-8T4GS4X supports Layer 3 static routing & dynamic routing features and robust layer 2 management function, which can fulfill the special needs of industrial automation applications.

DK3510MI-8T4GS4X is also high cost-effective easy-to-use device, which provides essential industrial Ethernet networking function, including wide range power input 12-58VDC, redundant power design with polarity reverse/over-voltage/over-current protection, robust IP40 fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability. It is the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions are harsh and critical.

Features:

➢ 8*10/100/1000Base-T RJ45, 4*100/1000Base-X SFP, 4*1G/2.5G/10GBase-X SFP+
➢ Redundant power 12-58V input with polarity reverse/over-voltage/over-current protection
➢ Support one digital output for relay alarm (terminal block Pin 5/6)
➢  Layer 3 features: Supports static and dynamic routing, RIP, OSPF, BGP4,ECMP, VRRP
➢  Support Layer 2 management function: VLAN/VLAN Classification/QinQ/STP, RSTP, MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading
➢ Support G.8032 ERPS protocol, recovery time ≤20ms
➢ Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design
➢ Operation temperature: -40°C ~+75°C
