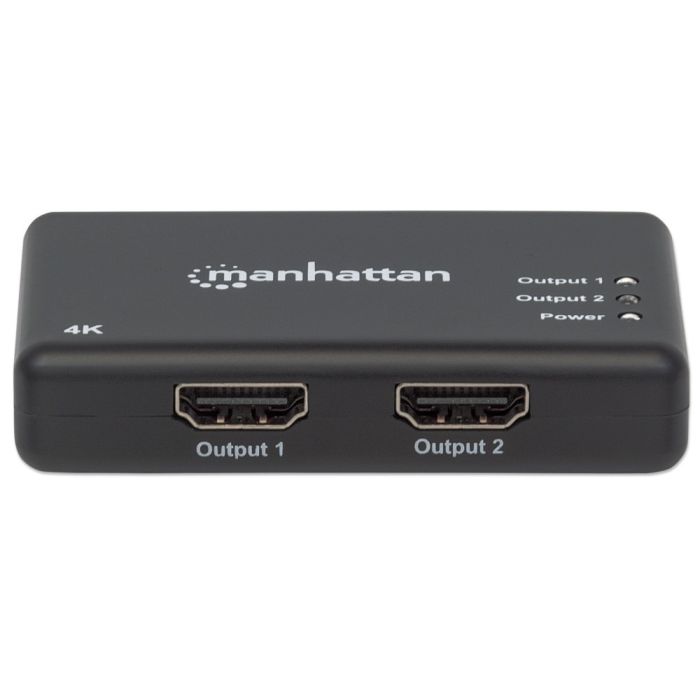

HDMI сплитер с 2 изхода, Ultra HD 4K 1080 3D

• Splitter capable of duplicating an Ultra-High-Definition (UHD) digital audio/video signal for two HDMI UHD displays
• 4K@30Hz resolution, full 3D video and Deep Color
• Supports video bandwidth amplification up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
• Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and 8-channel LPCM uncompressed audio
• Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
• Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
  HDCP compatible
• AC powered with Plug and Play installation; no special configurations required
• Up to three splitters can be cascaded to support four 4K displays
• Gold-plated contacts for long-lasting durability
• Works with PlayStation and Xbox game consoles, Blu-ray players, set-top boxes, satellite receivers and more

General information

• Source-splitter distance: up to 15 m
• Splitter-to-screen distance: up to 15m
• Power supply: 5 VDC; AC power supply, 0.9 m

Connections

• One HDMI female, 19-pin (input)
• Two HDMI female, 19-pin (output)
• One female DC power connector, OD 3.5mm / ID 1.3mm (input)

Entry/exit signal

• Video signal input: 0.5 – 1.0 V pp
• Input DDC signal: 5V pp (TTL)
• Maximum single-link range: resolution 3840x2160 at 30 Hz, 4096x2160 at 24 Hz
• Video Output: HDCP 1.4, DVI 1.0
• Frequency: 3.4Gbps / 340MHz

Video Resolutions

• DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@30Hz

Physical information

• Power and connection LED indicators
• Dimensions: 75 x 49 x 16 mm
• Power supply: 5 VDC / 1 A; 0.9 m
• Weight: 0.04 kg
• Housing: plastic

Environmental features

• Operating temperature: 0 - 40°C
• Storage temperature: -20 - 60°C
• Humidity (non-condensing): 0 - 96%

Standards and Certifications

• HDCP 1.4
• DVI 1.0
• CTS 1.4a
• THERE IS
• FCC
• RoHS2

Package Contents

• 2 Port 4K HDMI Splitter
• AC Power Supply
• User Manual
