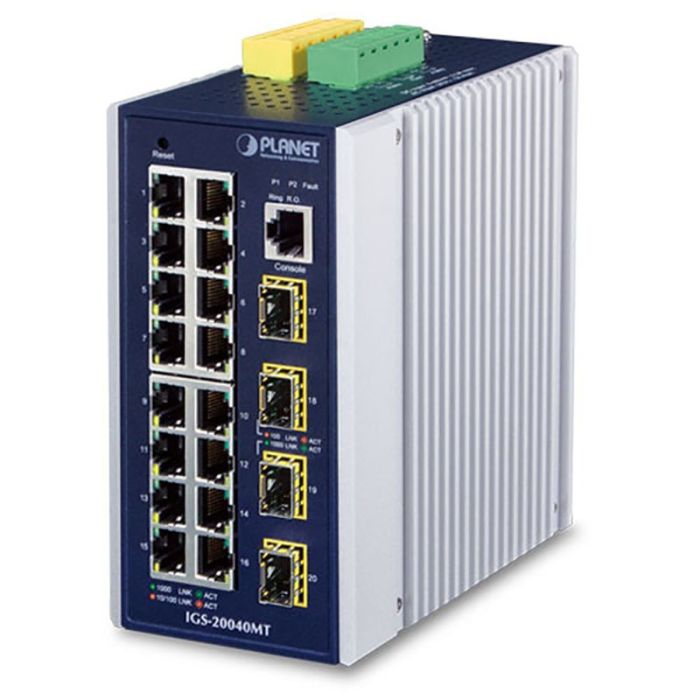

IP30 Управляем индустриален суич 16*10/100/1000TP + 4*100/1000 SFP, Planet

Physical Port:

• 16-Port 10/100/1000BASE-T RJ45 copper
• 4 x 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
• One RJ45 console interface for basic management and setup

Industrial Hardened Design:

• Dual power input, redundant power with reverse polarity protection
• DC 9 to 48 input or AC 24V input
• Active-active redundant power failure protection
• Backup of catastrophic power failure on one supply
•  Fault tolerance and resilience
• DIN-rail and wall-mountable designs
• IP30 aluminum case
• Supports 6000V DC Ethernet ESD protection
• -40 to 75 degrees C operating temperature


Industrial Protocol:

• Modbus TCP for real-time monitoring in  SCADA system
• IEEE 1588v2 PTP (Precision Time Protocol)

Digital Input and Digital Output:

• 2 Digital Input (DI)
• 2 Digital Output (DO)
• Integrates sensors into auto alarm system
• Transfers alarm to IP network via email and SNMP trap


Layer 3 IP Routing Features:

• Supports maximum 32 static routes and route summarization


Layer 2 Features:

• High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Storm Control support
• Broadcast/multicast/unknown unicast
• Supports VLAN
• IEEE 802.1Q tagged VLAN
• Up to 255 VLANs groups, out of 4095 VLAN IDs
• Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
• Private VLAN Edge (PVE)
• Protocol-based VLAN
• MAC-based VLAN
• Voice VLAN
• GVRP (GARP VLAN Registration Protocol)
• Supports Spanning Tree Protocol
• IEEE 802.1D Spanning Tree Protocol (STP)
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) by VLAN
• BPDU Guard
• Supports Link Aggregation
• 802.3ad Link Aggregation Control Protocol (LACP)
• Cisco ether-channel (static trunk)
• Maximum 10 trunk groups, up to 8 ports per trunk group
• Up to 16Gbps bandwidth (duplex mode)
• Provides port mirror (many-to-1)
• Port Mirroring of the incoming or outgoing traffic on a particular port
• Loop protection to avoid broadcast loops
• Supports E.R.P.S. (Ethernet Ring Protection Switching)
• IEEE 1588 and Synchronous Ethernet network timing
• Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
• Link Layer Discovery Protocol (LLDP)

Quality of Service:

• Ingress Shaper and Egress Rate Limit per port bandwidth control
• 8 priority queues on all switch ports
• Traffic classification
• IEEE 802.1p CoS
• IP TOS/DSCP/IP Precedence
• IP TCP/UDP port number
• Typical network application
• Strict priority and Weighted Round Robin (WRR) CoS policies
• Supports QoS and In/Out bandwidth control on each port
• Traffic-policing policies on the switch port
• DSCP remarking

Multicast:

• Supports IPv4 IGMP Snooping v1, v2 and v3
• Supports IPv6 MLD Snooping v1 and v2
• Querier mode support
• IPv4 IGMP Snooping port filtering
• IPv6 MLD Snooping port filtering
• MVR (Multicast VLAN Registration)

Security:

• Authentication
• IEEE 802.1x Port-based/MAC-based network access authentication
• Built-in RADIUS client to cooperate with the RADIUS servers
• TACACS+ login users access authentication
• RADIUS/TACACS+ users access authentication
• Access Control List
• IP-based Access Control List (ACL)
• MAC-based Access Control List (ACL)
• Source MAC/IP address binding
• DHCP Snooping to filter un-trusted DHCP messages
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
• IP Source Guard prevents IP spoofing attacks
• Auto DoS rule to defend DoS attack
• IP address access management to prevent unauthorized intruder

Management:

• IPv4 and IPv6 dual stack management
• Switch management interfaces
• Console/Telnet command line interface
• Web switch management
• SNMP v1, v2c, and v3 switch management
• SSH, TLS and SNMP v3 secure access
• SNMP Management
• Four RMON groups (history, statistics, alarms, and events)
• SNMP trap for interface Link Up and Link Down notification
• IPv6 IP address/NTP/DNS management
• Built-in Trivial File Transfer Protocol (TFTP) client
• BOOTP and DHCP for IP address assignment
• System Maintenance
• Firmware upload/download via HTTP/TFTP
• Reset button for system reboot or reset to factory default
• Dual Images
• DHCP Relay and DHCP Option 82
• DHCP Server
• User Privilege levels control
• Network Time Protocol (NTP)
• Network Diagnositc
• ICMPv6/ICMPv4 Remote Ping
• Cable diagnostic technology provides the mechanism to detect and report potential cabling issues
• SFP-DDM (Digital Diagnostic Monitor)
• SMTP/Syslog remote alarm
• System Log
• PLANET NMS system and Smart Discovery Utility for deployment management
