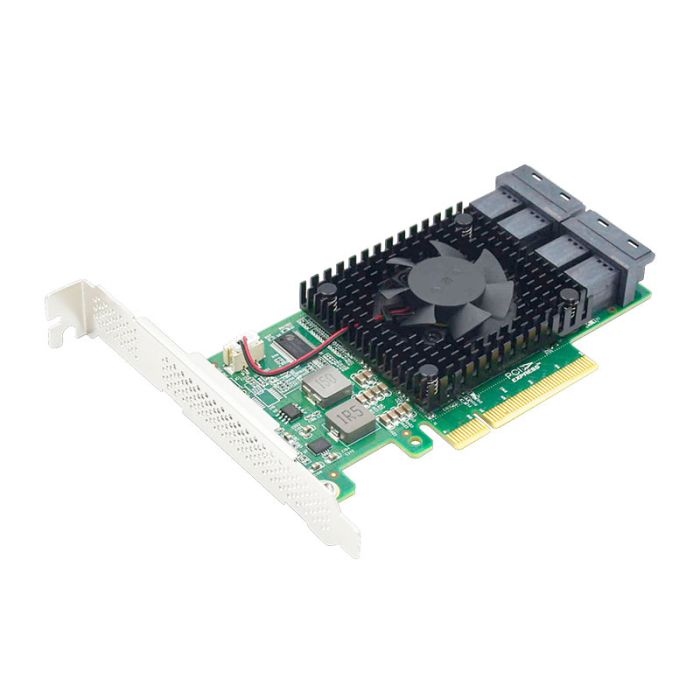

Адаптер PCIe Express 3.0 x8 към 4 x U.2 (SFF-8643) NVMe

The card is used for access control. It features high performance, non-blocking switch fabric, full line rate on all ports. It supports PCIe NVME ports and is suitable for supporting NVMe PCI Express SSDs. It can obtain maximum bandwidth and transfer speed while 4 U.2 NVMe SSDs are working at the same time.

Functional Characteristics

• Interface: 4xSFF-8643
• Host Bus Type: PCIe 3.0 (compatible w/ PCIe r1.0a/1.1&2.0)
• I/O Controller: PLX PEX8747
• Host Connectors: PCIe 3.0 x 8
• Disk type (device connectors): 4xNVMe SSD-8643
• Compliant with PCI Power Management Spec, r1.2.
• Supports Access Control Services
• High Performance, non-blocking switch fabric, full line rate on all ports
• List of supported systems: Microsoft Windows, RedHat, Suse, Vmware, MAC OSX, FreeBSD
• Operating temperature: 5°C to 50°C

Included in Package:

• PCI Express x8 to U.2(SFF-8643) NVMe Switch Adapter
• full-height bracket (installed)
• low-profile bracket
