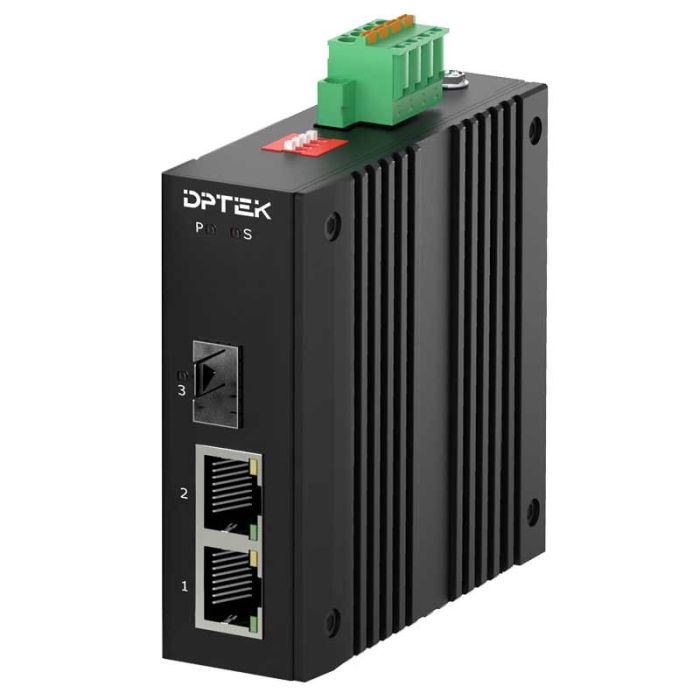

The DPTEK DK-MC10G-2TP1S-E series are unmanaged compact industrial grade PoE media converter with 2-port 10/100/1000-T PoE and 1-port 100/1000Base-X fiber optical interface. They comply with IEEE802.3af, IEEE802.3at standard PoE protocol, the Max power consumption can reach 30W (PoE+) per port. Moreover, they are featuring with port isolation, fiber port 100/1000M selection, 250m long distance transmission mode and PoE watchdog function, which all can be configured by the Dip switch on the top panel.
DK-MC10G-2TP1S-E series are also high cost-effective easy-to-use devices, which provide essential industrial Ethernet networking function, such as wide range power input 44-57VDC, redundant power design with polarity reverse/over-voltage protection, robust IP40 compact fan-less housing with Din-rail installation, wide operation temperature from -40°C to 75°C as well as high-level EMI/EMC capability and so on. They are the best choice for heavy industrial factory, transportation, oil & gas, chemical, IP Surveillance and processing automation area where environmental conditions exceed commercial product specifications.
Features
➢ 2*10/100/1000Base-T RJ45 PoE ports, 1*100/1000Base-X SFP(/SC/ST/FC optional) fiber port
➢ DC 44~57V input, redundant power supply with polarity reverse/over-voltage protection
➢ Complies with IEEE802.3af PoE and IEEE802.3at PoE+ standard
➢ Powerful Dip switch function:
- Port isolation;
- Fiber port 100/1000M selection;
- 250m long distance;
- PoE watchdog
➢ Support 10K Bytes Jumbo frame and 1M large buffer
➢ Support 4KV surge protection and ESD: Air-15kV, Contact-8kV Protection
➢ IP40 fan-less and Din-rail hardware design with compact size (30*85*85mm)
➢ Operation temperature: -40°C ~+75°C
Тегло, кг | 0.400000 |
---|---|
Марка | DPTEK |
Country of Manufacture | Китай |
Вид Лан Портове | 10/100/1000 Mb/s RJ45 |
Брой Лан Портове | 2 |
Оптични портове | SFP |
Брой Оптични Портове | 1 |
Скорост оптични портове | 1 Gb/s |
PoE | ДА |
PoE Стандарт | IEEE 802.3af 15.4W PoE, IEEE 802.3at 30W PoE+ |
Приложение: | Industrial |
Управление на суичовете | Неуправляем |
Form Factor | За монтаж на DIN шина |
EAN | 6977182780508 |
