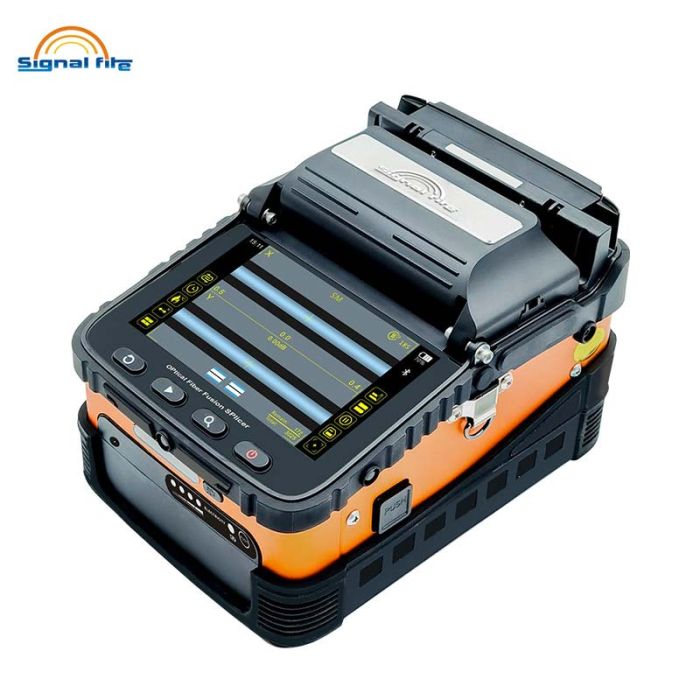

Сплайсер SignalFire AI-6A

Fiber alignment: Core/cladding
Motor number: 6 motors
Splicing time: 8s
Heating mode: 18s， can be customized according to the external environment
Fiber type: Single-mode fiber (SMF/G.652), BIF/G.657); Suitable for single mode, multi-mode, bare fiber, tail fiber, drop cable, jumper, invisible fiber fusion;
The cladding diameter: 80-150μm
Splicing loss: 0.02dB（SM）、0.01dB（MM）0.04dB（DS/NZDS）
Splicing mode: Automatic focusing core alignment, conventional/high precision welding
Splicing way: Automatic, semi-automatic
Fiber holder: Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper fiber,drop cable
Battery capacity: 5200mAh large capacity lithium battery charging time ≤3.5; It can continuously weld and heat about 160 cores
Magnification: 300x (X or Y axis single display) 150x (x and Y axis dual display)
Fiber diameter: Coating diameter: 80-150μm/Coating diameter: 100-1000μm
Cutting length: Coating layer 250μm below: 8-16mm/coating layer 250-1000μm: 16mm
Heat shrink tube: 60mm、50mm、40mm、25mm
Tensile testing: standard 2N
Display: 5 inch TFT color display screen
External lighting: USB port can be connected with EXTERNAL LED light, convenient for night construction
Charge mobile device: The USB port can charge mobile devices such as mobile phones
Boot time: 1s, boot can enter the working mode
Data is stored: Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data.
Wireless communication: Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m
Software upgrade: Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software
Management function: The equipment owner can be bound as the highest authority, and can remotely view the welding records,welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment.
Interface: USB2.0 (Type A) can be used to connect external LED lights and charge mobile devices
Return loss: Better than 60 db
Product protection: Waterproof, dustproof and fall proof
Power supply: Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level
The work environment: Temperature: -15 ~ +50℃, humidity: < 95%RH (no condensation), working altitude: 0 ~ 5000m, maximum wind speed: ≤15m/s
