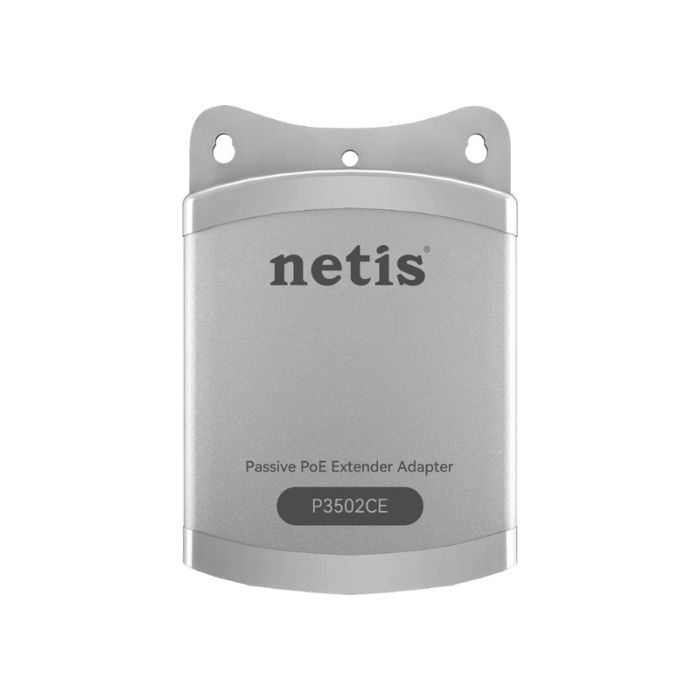

Пасивен PoE удължител P3502CE - водоустойчив

Interface: 2 x 100Mbps POE Port + 1 x 100Mbps Input Port

Basic function:

• IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
• Compatible with PDs compliant with IEEE 802.3af/at standard
• Compatible with certified non-standard PD
• Store and Forward
• MAC auto learning and aging
• IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control

Standards:

• IIEEE 802.3 Ethernet Media Access Control Protocol
• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3af enables powering Ethernet devices through Ethernet data pairs or devices
• IEEE 802.3at realizes high-power power supply for Ethernet devices through Ethernet data wire pairs or devices
• IEEE 802.3x flow control

Mode:

• OFF (Default mode)
• ON (Extended mode)

Data Transfer Rate:

• Ethernet 10Mbps half duplex, 20Mbps full duplex
• Fast Ethernet 100Mbps half duplex, 200Mbps full duplex

Store & Forwarding: Yes

Switching Capacity: 0.6G

MAC Address Table Size: 2K

Power: Supports standard POE, IEEE 802.3at to receive power, 30W max

Environment:

• Operation Temperature：0℃～40℃
• Storage Temperature：-40℃～70℃
• Operation Humidity：10%～90% RH Non-condensing
• Storage Humidity：5%～90% RH Non-condensing

Cabling type:

• 100Base-TX: Cat 5e or better UTP/STP(≤100m)
• 10Base-TX: Cat 5e or better UTP/STP(≤250m)

Dimensions (L/W/H): 150/98/36.5mm
