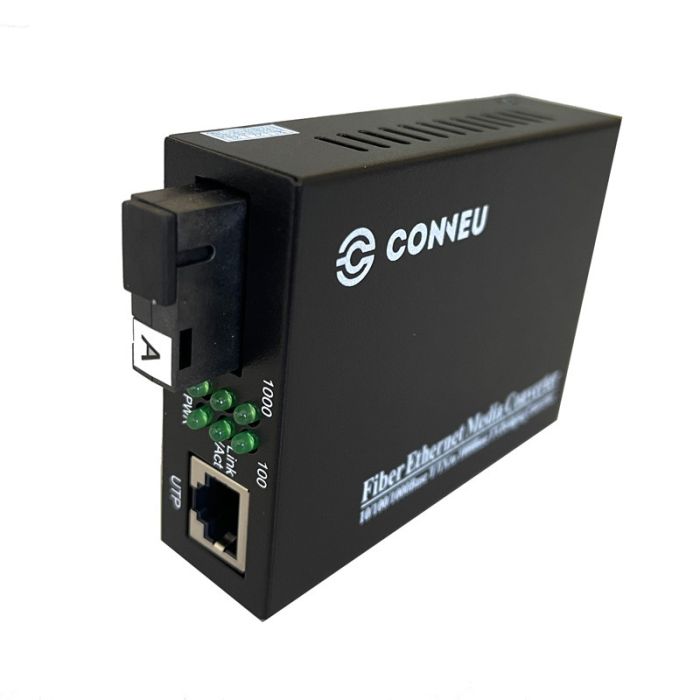

CNMC-B1100 series is a kind of 10/100/1000Mbps intelligent adaptive fast Ethernet media converter. It can implement date transmission between twisted pair electrical signals and optical signals which are the two type of network connection media. This type of media converter can extend the transmission distance of a network from 100M over copper wires to 20 km in which there is no help of any other converter. It should be installed in 16 rack media converter chassis when used.
Supporting:
- Full duplex and half-duplex transmission and capable of automatic negotiation, efficient built in switching core, to implement flow control and reduce broadcast packets.
- The transmission of extra-long packets over VLAN
- The selection of multiple types of fiber ports such as dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users.
| Weight, kg | 0.300000 |
|---|---|
| Brand | Conneu |
| Color | Black |
| Country of Manufacture | China |
| SFP Distance | 20 км |
| Data Rate | 10/100/1000M |
| Fiber optic connector type | SC |
| Wavelength nm | 1550, 1310 |
| Depth, cm | 0.000000 |
| Width, cm | 0.000000 |
| Height, cm | 0.000000 |
