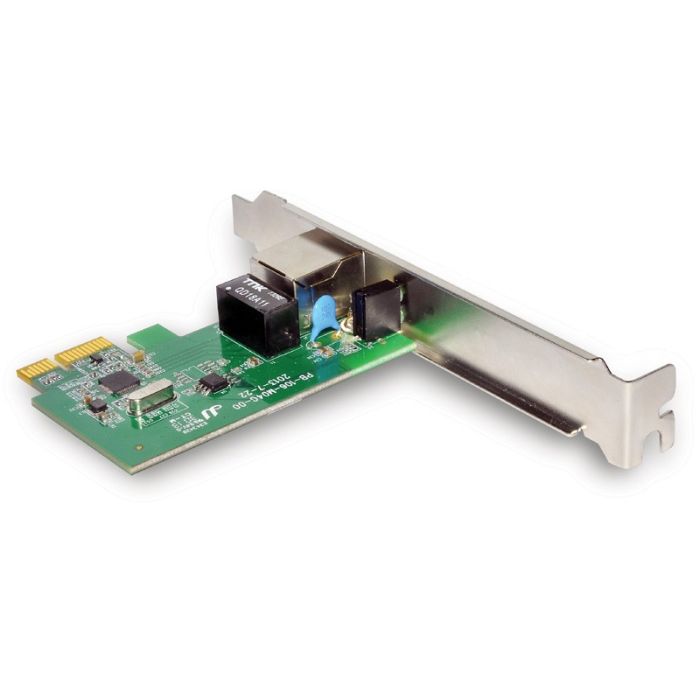

Supports PCI-E interface
Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T standards
Supports Full-Duplex, up to 20/200/2000M network bandwidth
Supports RPL/PXE BOOT-ROM
Supports Windows XP/Vista/7/8/8.1/10, Linux, MAC OS 10.4~10.7
| Hardware | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Base-T |
| Interface | 32-bit PCI-E 1 * 10/100/1000Mbps RJ45 port, Auto-Negotiation, Auto MDI/MDIX |
| LED | LNT/ACT, 1000M |
| Data Transmission Rate | 10/100/1000Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| WOL | Supported |
| RPL/PXE BOOT-ROM | Supported |
| Network Drivers |
Windows XP (32/64bits), Windows Vista (64/86bits), Windows 7 (64/86bits), Windows 8 (64/86bits), Windows 8.1 (64/86bits), Win 10(32/64bits) MAC 10.4/10.5/10.6/10.7 Linux as Ubuntu 14.04/12.04/11.04 |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Package | 1 * AD1103 1 * Quick Installation Guide 1 * Low Profile Bracket 1 * Driver CD |
| Weight, kg | 0.000000 |
|---|---|
| Brand | STONET |
| Depth, cm | 0.000000 |
| Width, cm | 0.000000 |
| Height, cm | 0.000000 |
