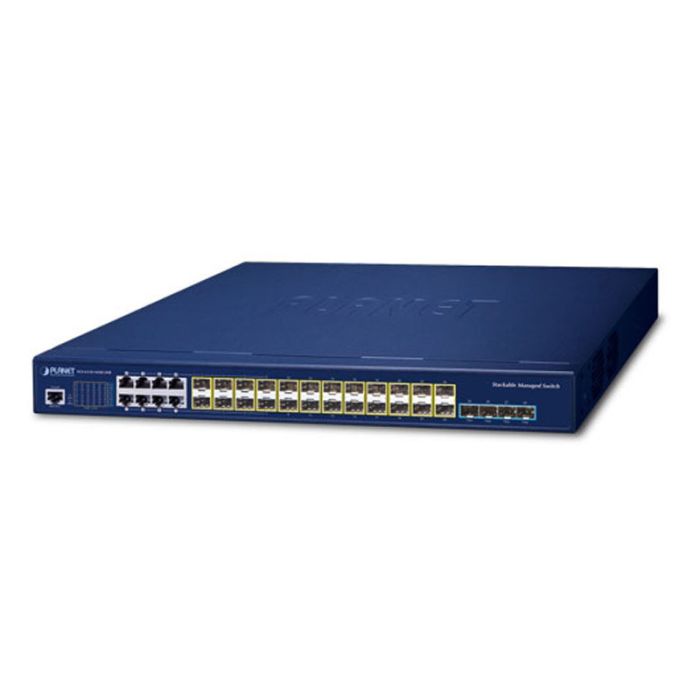

L3 switch 16-port 100/1000X SFP + 8-Port Gigabit TP/SFP

Physical Ports

• 24 100/1000BASE-X SFP ports
• 8 10/100/1000BASE-T RJ45 copper ports, shared with Ports 1 to 8
• 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
• RJ45 to DB9 console interface for switch basic management and setup

Stacking Features

• Hardware Stacking
• Virtualized multiple SGS-6310 series stacked into one logical facility
• Connects with stack members via assigned 10G SFP+ interfaces
• Single IP address stack management, supporting up to 8 hardware units stacked together
• Stacking architecture supports redundant Ring mode

IP Routing Features

• IPv4 routing protocol supports RIPv1/v2 and OSPFv2
• IPv6 routing protocol supports RIPng and OSPFv3
• Routing interface provides per VLAN routing mode
• VRRPv1/v3 protocol for redundant routing deployment
• Supports route redistribution
• Supports hardware-based wire-speed VLAN routing

 Layer 2 Features

• High performance Store-and-Forward architecture, broadcast storm control, port loopback detection
• 16K MAC address table, automatic source address learning and aging
• Supports VLAN
• Supports Link Aggregation
• Supports Spanning Tree Protocol
• Port mirroring to monitor the incoming or outgoing traffic on a particular port (one-to-one and many-to-one)
• Provides port mirror (many-to-1)
• Supports G.8032 ERPS (Ethernet Ring Protection Switching)
• Loop protection to avoid broadcast loops
• Link Layer Discovery Protocol (LLDP)
• Compatible with Cisco UDLD (uni-directional link detection) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices

Security

• Authentication
• Access Control List
• DHCP snooping to filter distrusted DHCP messages
• IP Source Guard prevents IP spoofing attacks
• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
