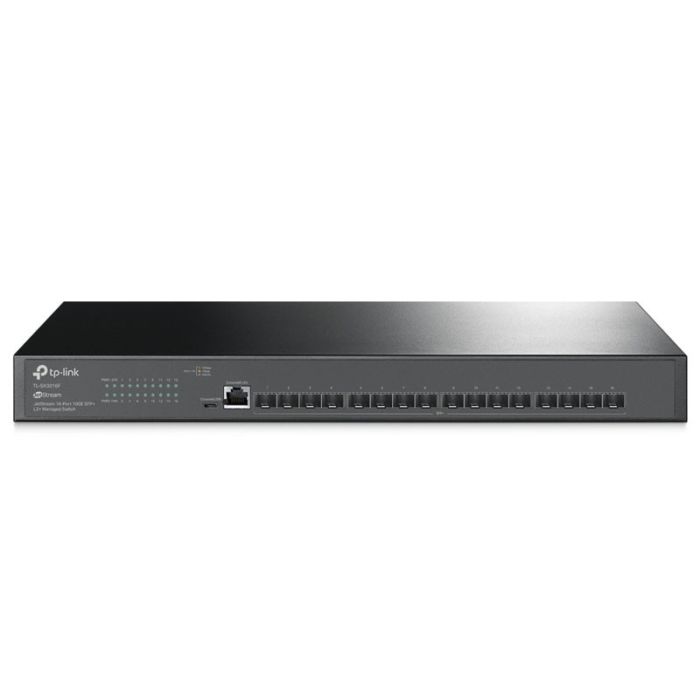

16-Port Managed Switch L2+ 10GE SFP+, JetStream

TP-link

Rating:

Add a review

SKU

TL-SX3016F

16 x Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity.
Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping and more.
Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication and more.
Dual Redundant Power Supplies: Two power supplies backing each other up make it an ideal choice for reliable networking architecture.
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring powerful management capabilities.

Attached files

BGN 1,030.80 BGN 859.00

Price

BGN 1,030.80 BGN 859.00

Out of stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Hardware features of 16-port managed switch

Interface: 16 x 10GE SFP+ Slots/ 1 x RJ45 Console Port/ 1 x Micro-USB Console Port
Fan Quantity: 1
Power Supply: 100-240 V AC~50/60 Hz
Dimensions (W x D x H): 440 x 220 x 44 mm
Mounting: Rack Mountable
Max Power Consumption: 32.74 W (220 V / 50 Hz)
Max Heat Dissipation: 111.71 BTU/hr (220 V / 50 Hz)

Performance

Switching Capacity: 320 Gbps
Packet Forwarding Rate: 238.08 Mpps
MAC Address Table: 32 K
Packet Buffer Memory: 24 Mbit
Jumbo Frame: 9 KB

L2 and L2+ Features

Link Aggregation: static link aggregation/ 802.3ad LACP/ Up to 8 aggregation groups, containing 8 ports per group
Spanning Tree Protocol: 802.1d STP/ 802.1w RSTP/ 802.1s MSTP/ STP Security: TC Protect, BPDU Filter, Root Protect
Loopback Detection: Port based/ VLAN based
Flow Control: 802.3x Flow Control/ HOL Blocking Prevention
Mirroring: Port Mirroring/ CPU Mirroring/ One-to-One/ Many-to-One/ Tx/Rx/Both

L3 Features

16 IPv4/IPv6 Interfaces
Static Routing: 48 static routes
Static ARP: 128 Static Entries
Proxy ARP
Gratuitous ARP
DHCP Server
DHCP Relay: DHCP Interface Relay/ DHCP VLAN Relay
DHCP L2 Relay

Environment

Operating Temperature: 0–45 ℃
Storage Temperature: -40–70 ℃
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

More Information

More Information
Weight (kg)	0.000000
Brand	TP-link
Color	Black
Lan Ports Number	1
Number of Fiber Optical Ports	16
Fiber optical ports	SFP
Optical ports speed	10 Gb/s
Lan Ports Type	10 Gb/s RJ45
Form Factor	Rack Mount
PoE Standard	None
Used for:	Commercial
Switch Management	Layer 2+

Attachments

L2+ managed switches
Datasheet 10G L2+ managed switches JetStream
Download
