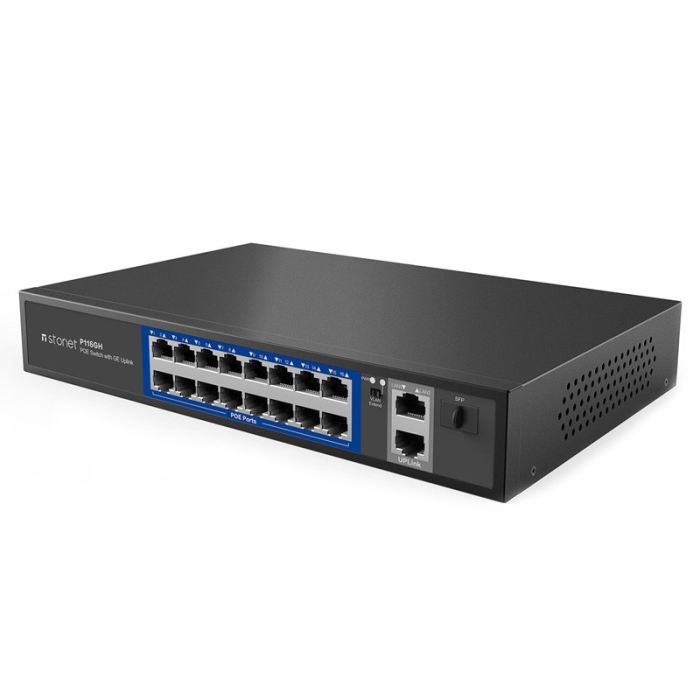

Features
- Supporting 802.3, 802.u Faster Ethernet, IEEE 802.3ab 1000BASE-T
- Supports POE IEEE 802.3af/at compliant Powered Device (PD)
- Modes: Normal switch mode/ Extended mode (Port 1-16: 250 meters ultra-long transmission)
- Ports 1~16 features POE power supply capability and can be used as Power over Ethernet devices; 2*10/100/1000Base-T Uplink and 1*1000Base-X SFP
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- Auto MDI/MDIX crossover for all ports
- Support non-blocking wire speed forwarding
- MAC address auto-learning & auto-aging
- Steel case, the total POE power budget of 200W
- Just Plug and Play
Interface
- 16 x 10/100Mbps POE ports (Data/Power)
- 2 x 10/100/1000Mbps uplink RJ45 ports (Data)
- 1 x 1000Mbps SFP slot ports (Data)
Basic functions
- Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
- Supports POE IEEE 802.3af/at compliant Powered Device (PD)
- Store-and-forward switching scheme
- Support IEEE802.3X full duplex and Backpressure half duplex
- MAC address auto-learning & auto-aging
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3x Flow Control
Data Transfer Rate
- Ethernet: 10Mbps (Half-duplex); 20Mbps (Full-duplex)
- Fast Ethernet: 100Mbps (Half-duplex); 200Mbps (Full-duplex)
- Gigabit Ethernet: 2000Mbps (Full-duplex)
Specifications
- Mode: Normal switch mode
- Store & Forwarding: Yes
- Switching Capacity: 9.2G
- MAC Address Table Size: 8K
- Jumbo Frame: 2048 byte
- Dimensions (L x W x H ): 220 x 180 x 43 mm
Environment
- Operation Temperature: 0℃～40℃
- Storage Temperature: -40℃～70℃
- Operation Humidity: 10%～90% RH Non-condensing
- Storage Humidity: 5%～90% RH Non-condensing
Power Input POE Standards
- Single port maximum power 30W
- Whole switch maximum power 200W
- Support over-current, over-voltage and short-circuit protection
- Support Soft Start of High Power PD
- Support sequential boot-up
- Power Supply Pin: 12+/36-
- AC 110~240V 50/60HZ
Cabling type
- 1000Base-TX: Cat 5e or better UTP/STP (≤100 m)
- 100Base-TX: Cat 5e or better UTP/STP (≤100 m)
- 10Base-TX: Cat 5e or better UTP/STP (≤250 m)
| Weight, kg | 0.000000 |
|---|---|
| Brand | STONET |
| Color | Black |
| Country of Manufacture | China |
| Lan Ports Type | 10/100 Mb/s RJ45, 10/100/1000 Mb/s RJ45 |
| Lan Ports Number | 18 |
| Fiber optical ports | SFP |
| Number of Fiber Optical Ports | 1 |
| Optical ports speed | 1 Gb/s |
| PoE | YES |
| PoE Standard | IEEE 802.3af 15.4W PoE, IEEE 802.3at 30W PoE+ |
| Used for: | Commercial |
| Switch Management | Unmanaged |
| Form Factor | Desktop |
