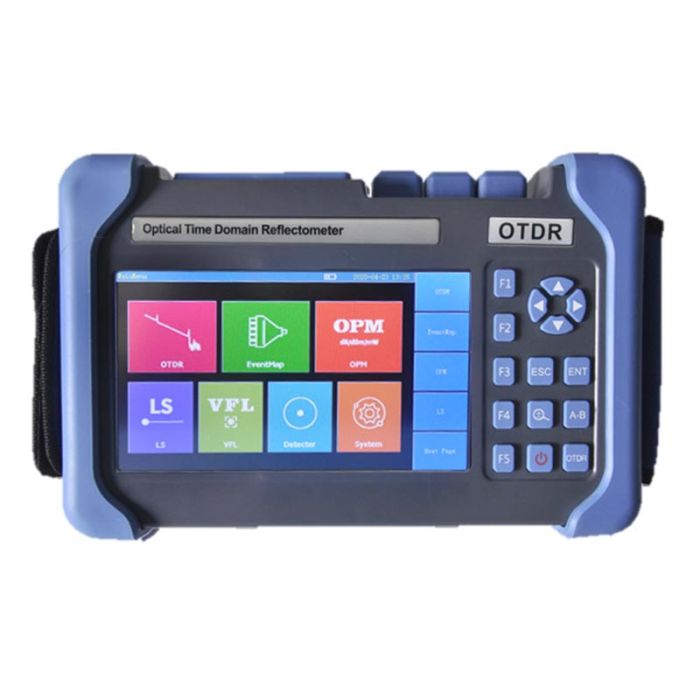

- 7-inch TFT color LCD display, touch screen
- External interfaces USB, MICRO-USB
- Maximum 45dB large dynamic range
- 128k data sampling points
- High ranging resolution of 0.05m
- ≤0.8m ultra-short event blind zone
- Easy to test fiber jumper
- PON network Online test
- Penetrate optical splitter up to 1:8 / 1:64
- Test each branch of the PON network accurately
- Feature: OTDR, Event Map, OPM, OLS, VFL, (Microscope Optional)
- Automatic detect and alarm of incoming optical signals
- Quickly protect the device
- Optical output interface FC/SC/ST
- Built-in High Capacity lithium battery
- Battery operating time: > 12h
- Supports variety language interfaces: Chinese, English, Spanish, French, German, Italian, Portuguese, Russian, Korean, etc.
| Weight, kg | 0.000000 |
|---|---|
| Brand | Conneu |
| Country of Manufacture | China |
| Output Power | 10 mW |
| Standard | USB 2.0 |
| Connector type | USB Type-A, USB Type-B |
| Protection | IP 65 |
| Fiber optic connector type | FC |
| Wavelength nm | 1550, 1310 |
| Depth, cm | 0.000000 |
| Width, cm | 0.000000 |
| Height, cm | 0.000000 |
