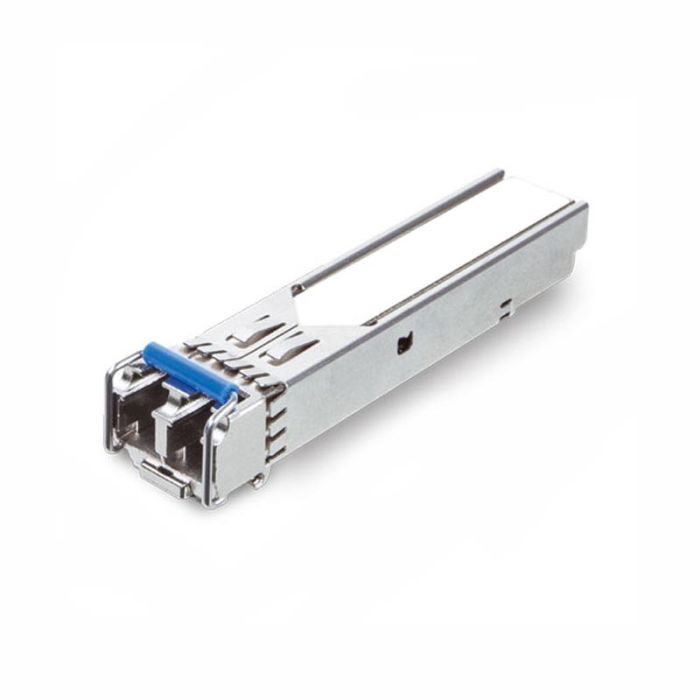

MGB-2GTLA20 small form-factor pluggable (SFP) transceiver modules are specifically designed to work with PLANET products with 2.5G SFP interface that enables to build a high-performance 2.5Gbps Ethernet network over optical fiber for enterprises, telecoms and ISPs.
To meet the increasing demand of the Industrial Ethernet fiber solution, PLANET MGB-2GTLA20 transceivers can operate reliably in the electrically harsh, climatically demanding, and wide temperature range (-40 degrees C to 85 degrees C) environment. The MGB-2GTLA20 modules provide easy and fast 2.5Gbps connection for PLANET wide temperature industrial equipment.
The MGB-2G SFP 2.5Gigabit Ethernet module is ideal for all industrial purposes as it can withstand an extreme temperature of -40 to 85 degrees Celsius. The SFP transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to/from any SFP port without having to power off the Switch.
Specifications
- Up to 2.5Gbps data links
- Single power supply of 3.3V
- TTL signal detection indicator
- Hot pluggable
- Supports DDM (digital diagnostic monitoring)
- Wide operating temperature from -40 degrees C to 85 degrees C
- Monitoring interface compliant with SFF-8472
- Plug and Play configuration
Features
- PHY Type: 2500BASE-X
- Fiber Type: Single-mode
- Connector: Simplex LC/UPC
- DDM: Yes
- Wavelength: TX1310 nm, RX1550 nm
- Maximum Distance: 20km
- Operating Temperature: -40~85 degrees C
- Storage Temperature: -40~85 degrees C
| Weight, kg | 0.000000 |
|---|---|
| Brand | Planet - Тайван |
| SFP Multi-rate | ДА |
| SFP Distance | 20 км |
| Used for: | Industrial |
| Data Rate | 2.5G |
| SFP Package | BIDI SFP |
| Fiber optic connector type | LC |
| Wavelength nm | 1550, 1310 |
| Depth, cm | 0.000000 |
| Width, cm | 0.000000 |
| Height, cm | 0.000000 |
