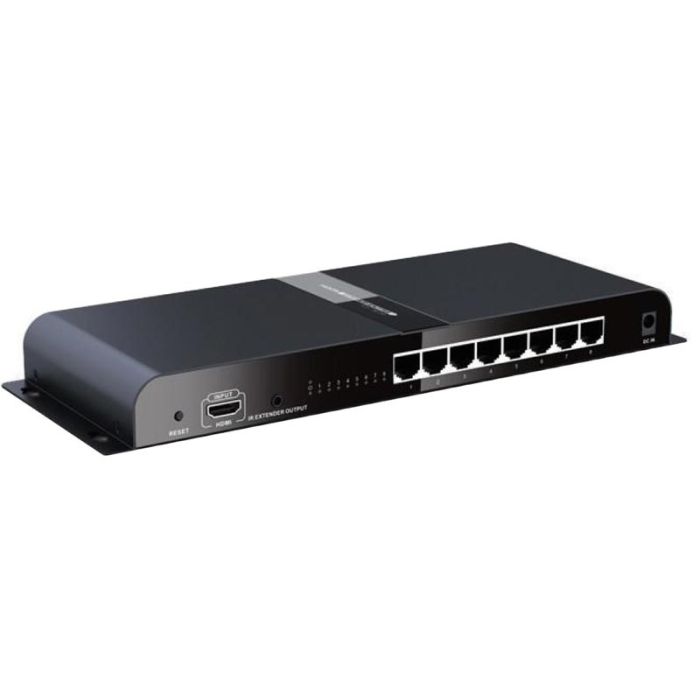

IDATA-EXTIP-318V4 is an HDMI splitter that applies HDbitT technology to distribute an HDMI source to 8 HDMI displays over Category 6, 6a or 7 cable to compatible receivers at the same time (kit consisting of a base, transmitter and an additional receiver). It supports distance transmission up to 120 meters and the maximum resolution of 1080P.
Features
- Incorporates HDbitT technology
- Compatible with HDMI and HDCP
- Distributes an HDMI source to 8 monitors over Cat. 6 / 6a / 7 cable
- Supports video resolution from 480i @ 60Hz to 1080p @ 50Hz / 60Hz
- Supports transmission distances of up to 120 meters through the network cable
- Supports infrared signal transmission
Technical specifications
- HDMI signal: HDCP compatible
- HDbitT protocol
- Supported Resolutions: 480i @ 60Hz; 480p @ 60Hz; 576i @ 50Hz; 576p @ 50Hz; 720p @ 50 / 60Hz; 1080i @ 50 / 60Hz; 1080p @ 50 / 60Hz
- Transmission distance: up to 120 meters with 1080p @ 60Hz full HD resolution over Cat.6 cable
- Supports 50/60 kHz IR signal
- Input: 1 x HDMI
- Outputs: 8 x RJ45
- 8 connection LEDs
- Power supply: 12V 3A
- Consumption: < 24W
- Black color
- Attention includes 1 additional receiver
Dimensions
- Width: 299 mm
- Depth: 110.7 mm
- Height: 29.6 mm
- Weight: 430 g
Certifications
- EC
- FCC
- RoHS
- WEEE
| Weight, kg | 0.000000 |
|---|---|
| Brand | Techly |
| Color | Black |
| Type | Удължител |
| Signal transferring | Аудио сигнал, Видео сигнал |
| Category | Cat 6, Cat 6a, Cat 7 |
| Connector type | HDMI Standard |
| Depth, cm | 0.000000 |
| Width, cm | 0.000000 |
| Height, cm | 0.000000 |
