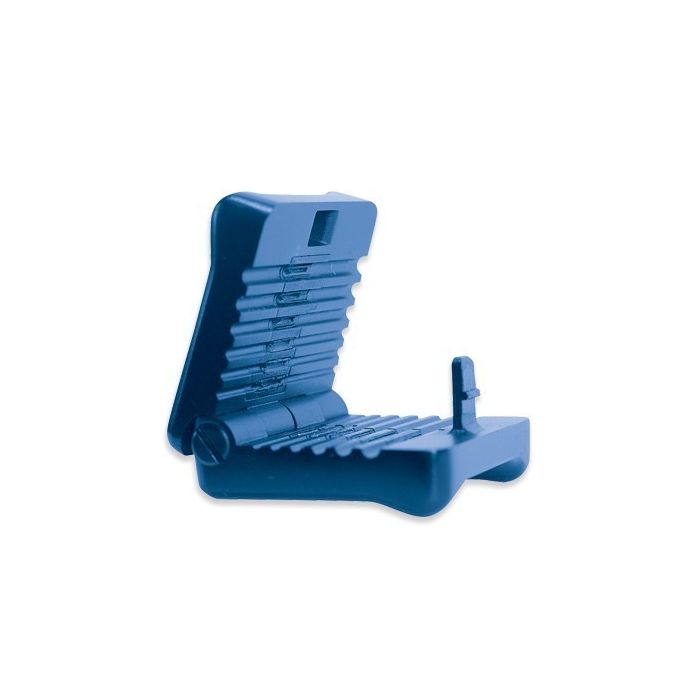

Longitudinal Buffer Tube Slitter for fiber optic cable, 6 precision grooves

Rating:
SKU
MS-6

Designed to provide easy access to optical fibers in loose buffer tubes 1.2 mm - 3.3 mm diameter. With 6 precision grooves, buffer tube slitting is done without damage to the fiber. The blades are replaceable (MSB-1533).

Groove Sizes:

  • 1.2 - 1.5 mm
  • 1.5 - 1.8 mm
  • 1.8 - 2.1 mm
  • 2.1 - 2.5 mm
  • 2.5 - 2.9 mm
  • 2.9 - 3.3 mm
Attached files
BGN 184.68 BGN 153.90
BGN 184.68 BGN 153.90
Out of stock

Easy to use:

  1. Select the correct groove. Each groove is marked with the recommended fiber size
  2. Place the fiber in the groove to be used. The arrow on the top of the MS-6 indicates blade location and pulling direction.
  3. Close the tool, make sure the lock is engaged, then pull.
More Information
Weight, kg0.000000
BrandJonard Industries Corp.
Depth, cm0.000000
Width, cm0.000000
Height, cm0.000000
  • Tube slitter MS-6

    Datasheet Longitudinal buffer tube slitter for fiber optic cable
